NeoRing
Dual-ring addressable LED PCB with 96 RGB LEDs
Coming Soon
Ordering is paused while we prepare the next production run. Everything here stays available to browse, and the store reopens on this page first.
LEDs
96 (48 inner + 48 outer)
Type
WS2812B-compatible
Daisy-Chain
Yes (DOUT → DIN)
Compatibility
Arduino
A compact PCB featuring two concentric rings of 48 individually addressable WS2812B-compatible RGB LEDs. Perfect for cosplay helmets, robot eyes, desk lamps, and any project that needs a vibrant ring of light. Daisy-chain multiple boards for even more LEDs.
96 LEDs, Dual Rings

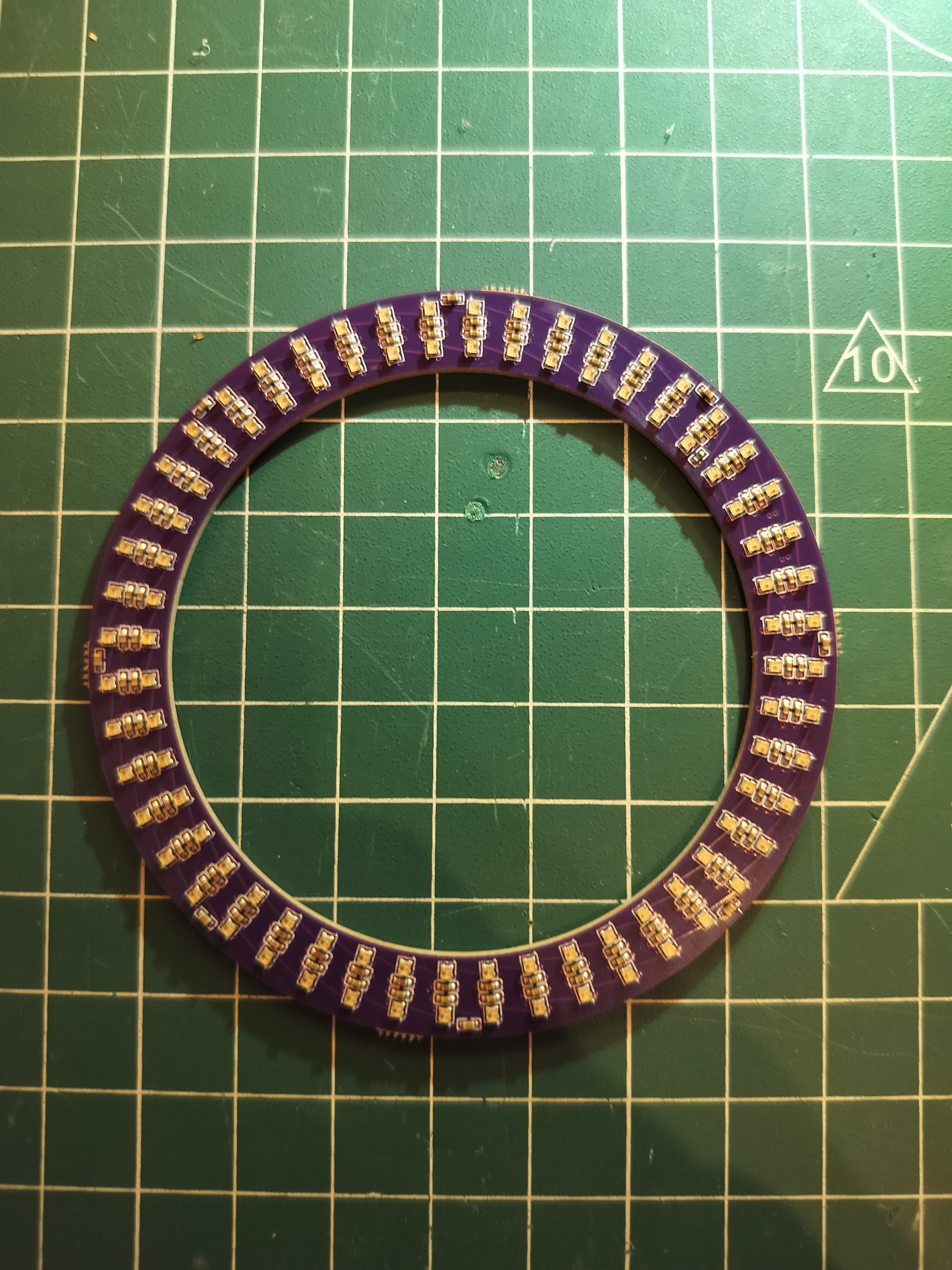

Two concentric rings of 48 LEDs each, individually addressable for complex patterns and animations.
26 Built-in Effects
Rainbow wheels, fire rings, comets, sparkles, and more — all ready to use out of the box with the RobotechPixel library.
Daisy-Chain Ready

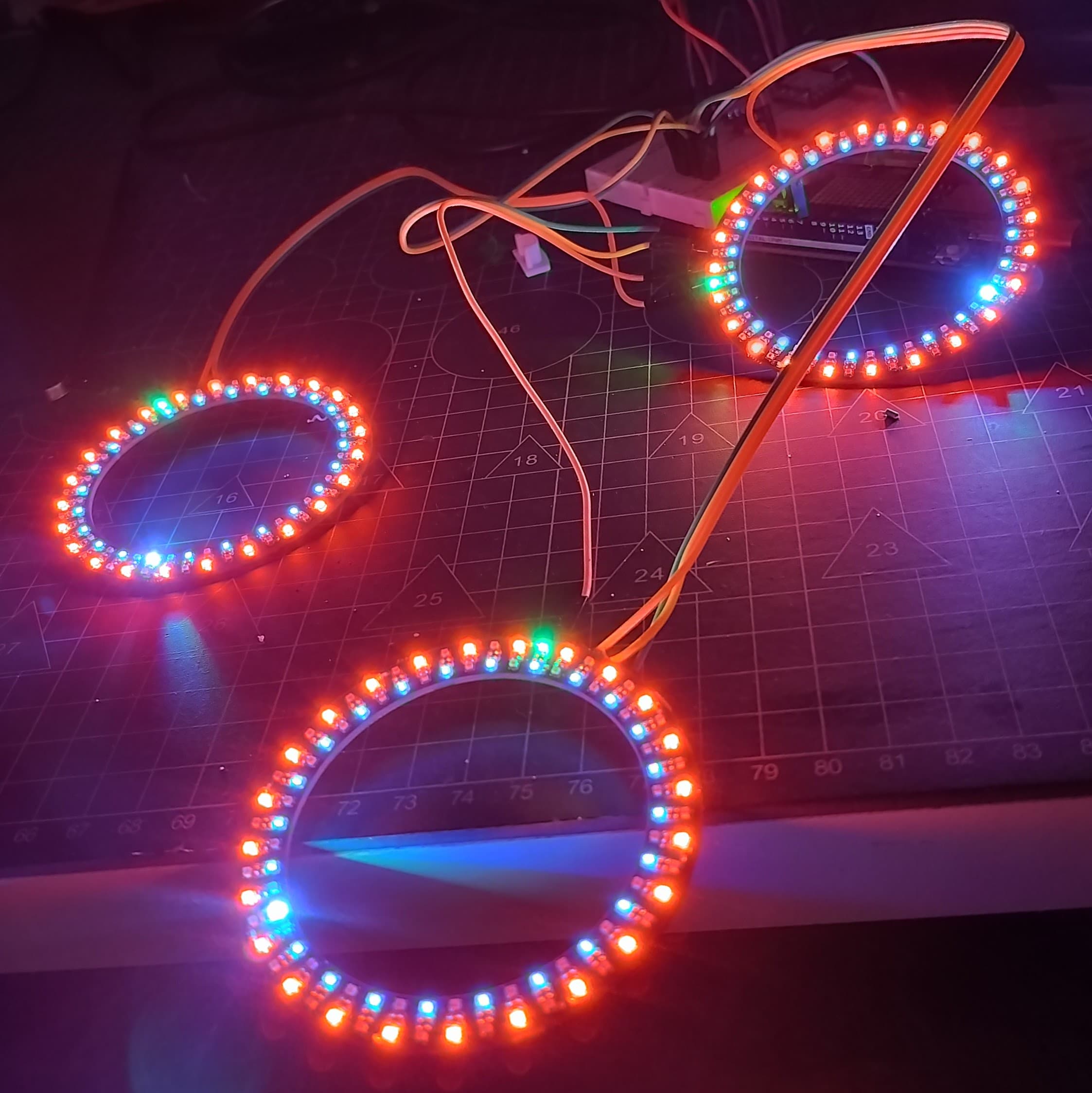

Connect multiple NeoRings via DOUT → DIN for larger displays. The library handles multi-board addressing automatically.
Specifications
| LED Count | 96 (48 inner + 48 outer) |
| LED Type | WS2812B-compatible (XL-1010RGBC) |
| LED Package | 1.0 × 1.0 mm |
| Protocol | Single-wire (800 kHz NZR) |
| Supply Voltage | 3.5–5.5 V |
| Max Current (full white) | ~0.68 A (3.4 W) |
| Idle Current | ~34 mA |

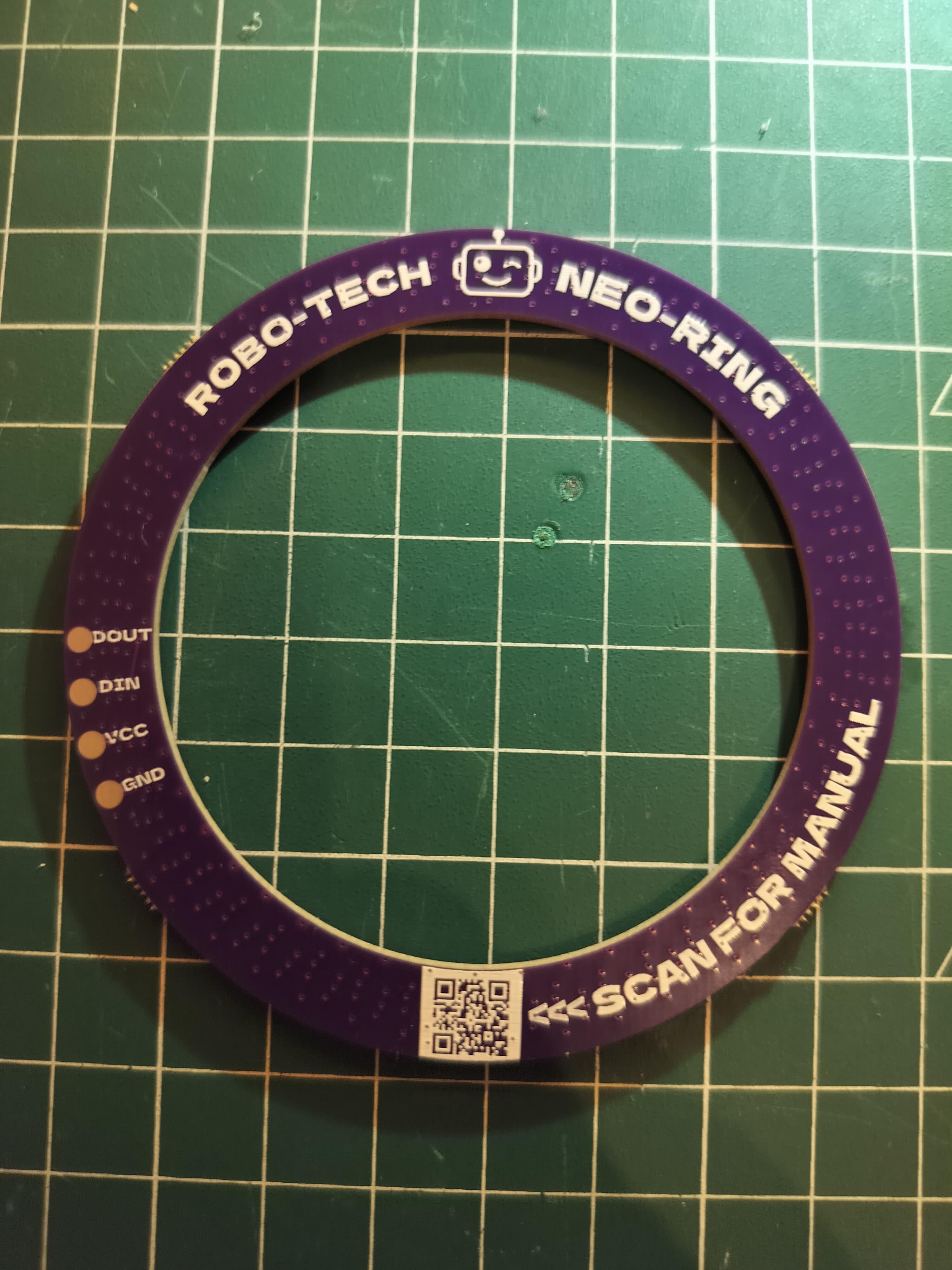

| Daisy-Chain | Yes (DOUT → DIN) |
| Compatibility | Arduino, ESP32, RP2040, any 3.3–5 V MCU |
| Built-in Effects | 26 |
| Board Dimensions | 77 mm outer / 60 mm inner diameter |
